When it comes to selecting the best warehouse racking systems, it is not often a one-size-fits-all affair. The selection depends on storage capacity, access requirements, cost, type of inventory, and workflow. What works well in one facility might not work well in another. This guide delves into the best racking options for various storage requirements, including traditional pallet storage, high-density systems, specialized racks, space-saving designs, and advanced automated technologies. Let’s get started!
Best for Standard Pallets: Versatility & Budget

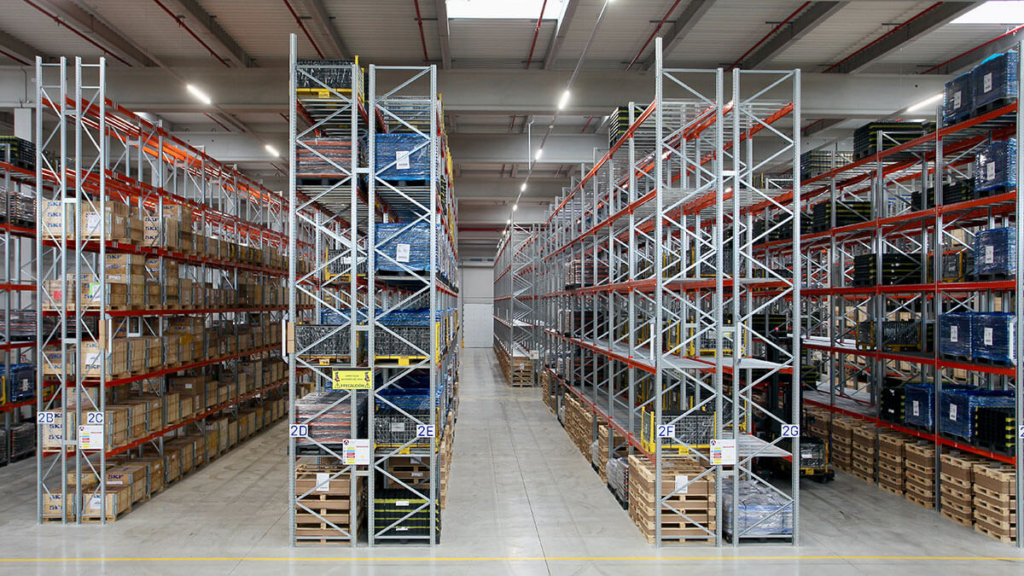

1. Selective Pallet Rack
With a selective pallet rack, you have direct access to each pallet in the system. No moving of surrounding inventory to reach each pallet position. This design offers 100% selectivity throughout the entire warehouse floor. Easy installation with low tools and labor. It is highly valued by businesses for being the lowest upfront cost of all types of racking. Beam levels can be easily changed to meet storage requirements.

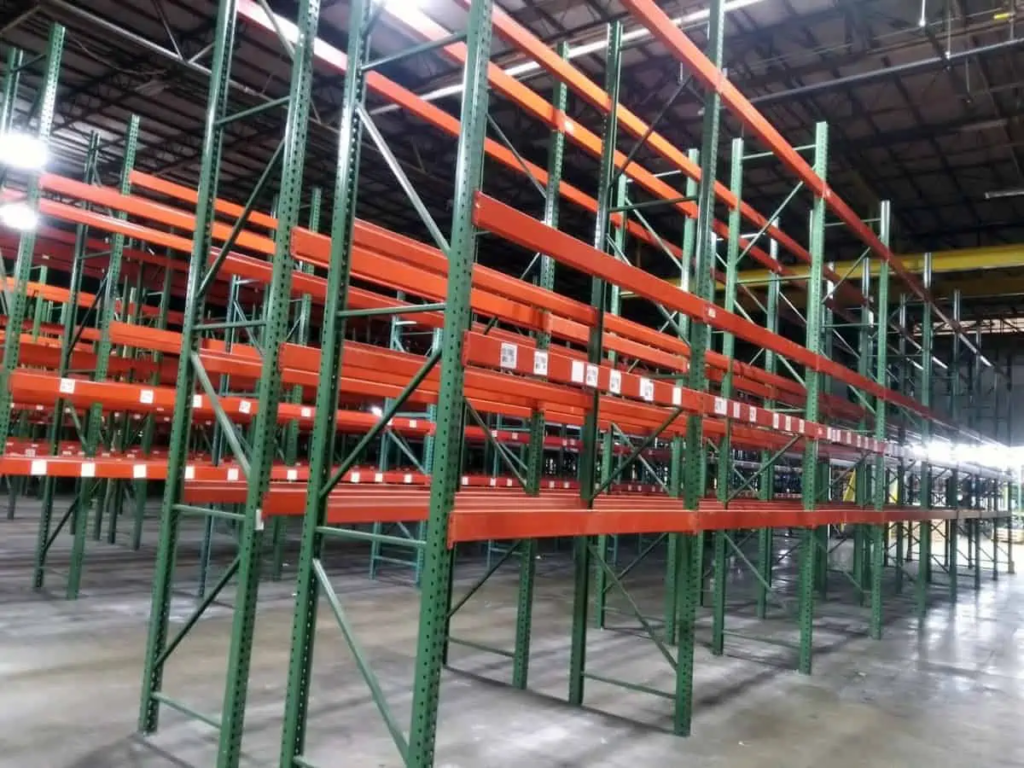

2. Teardrop Pallet Rack
The teardrop pallet rack is the industry standard best warehouse racking system for North American warehouses. Beams fit and lock instantly through its signature teardrop-shaped holes. No bolts are required, and assembly and reconfiguration is very quick. Most components are interchangeable with those of other manufacturers because of the standardized hole pattern. This compatibility cuts the expenses to a large extent in extensions. Facilities enjoy flexibility in layout with no expensive custom hardware.
Best for High-Density Pallet Storage (Maximizing Volume)

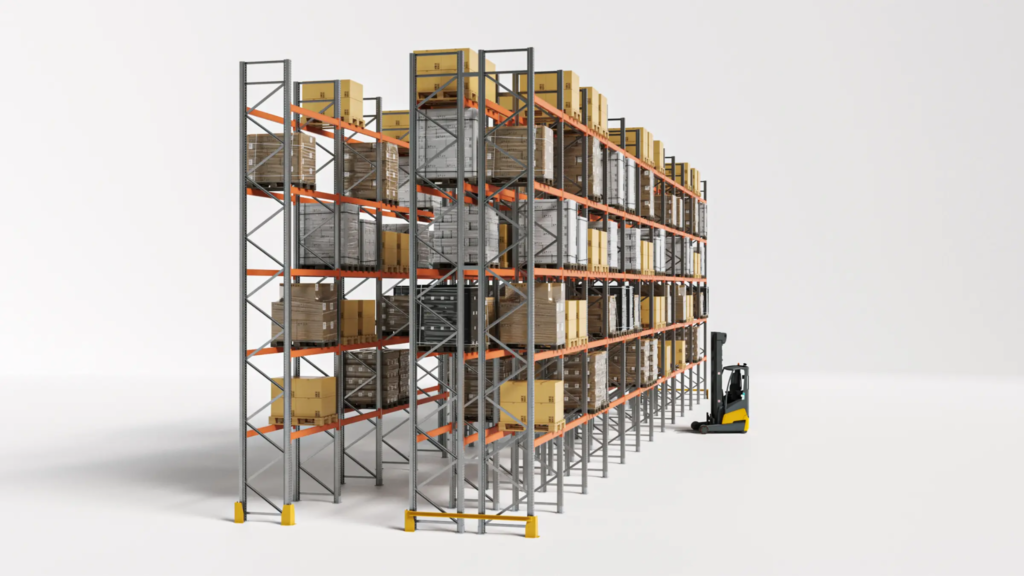

3. Double Deep Pallet Rack
Double Deep Pallet Rack will store pallets two positions deep in each bay, effectively doubling the standard bay capacity. It maximizes the use of space in the warehouse up to 30% without any major structural changes. Specialized pantograph reach trucks are needed to safely and efficiently reach rear pallets. It is a cost-effective mid-range solution, offering a balance between high-density storage and moderate SKU variety, which is ideal for warehouses with moderate SKU variety.

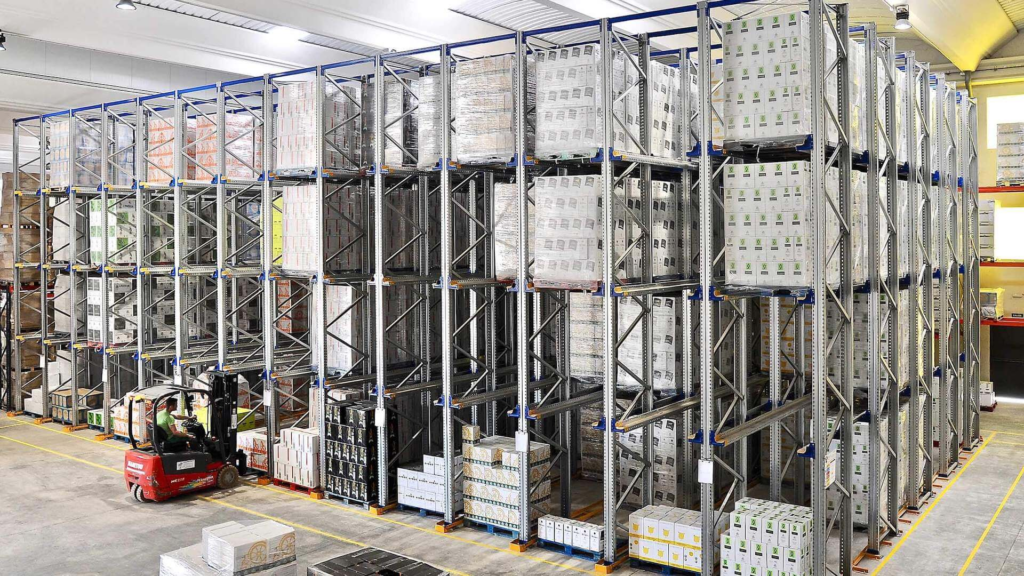

4. Drive-In Rack
Drive-In Rack is a high-density and best warehouse racking/storage system where the forklift physically drives into the structure bays to load or retrieve pallets. It gets rid of several aisles and frees up a considerable amount of floor space. Works on a “Last In First Out” principle, well-suited to high-volume low-SKU scenarios. Items that are non-perishable and standardized, such as beverages or building materials, are good choices. It provides the most storage density of all the conventional racking systems at competitive prices.

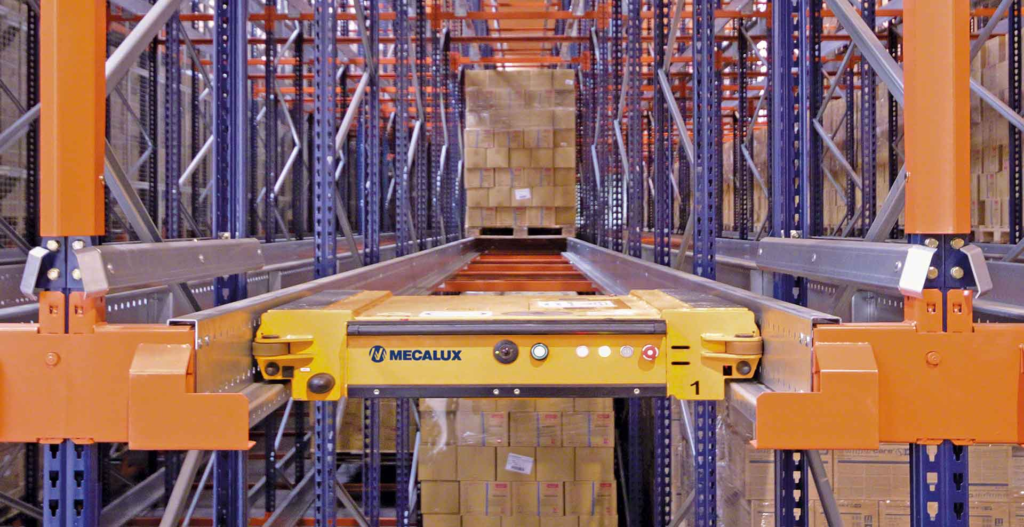

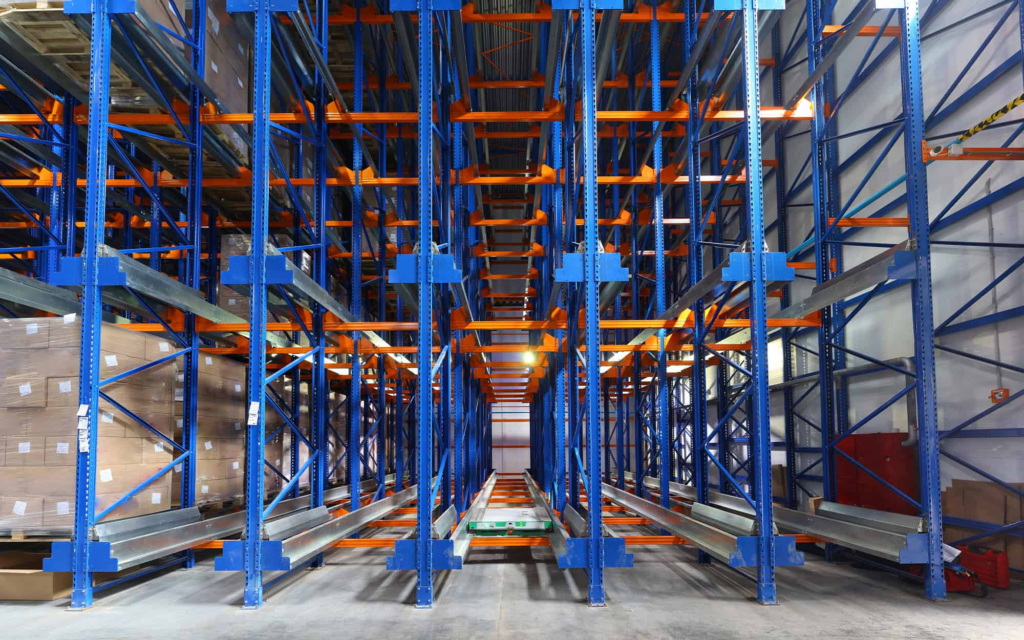

5. Radio Shuttle Rack
Radio Shuttle Rack is a semi-automatic deep-lane warehouse rack system that utilizes a battery-operated, remote-controlled Shuttle Cart to store and retrieve parts. The shuttle moves within rack lanes, and the shuttle is able to pick and place pallets without forklift accessing bays. This significantly cuts down on forklift travel time and greatly lessens the potential for operator injuries. It includes FIFO and LIFO inventory flows, and can be configured to support either. This efficient, high-density solution is ideal for warehouses with high numbers of single-SKU pallets.

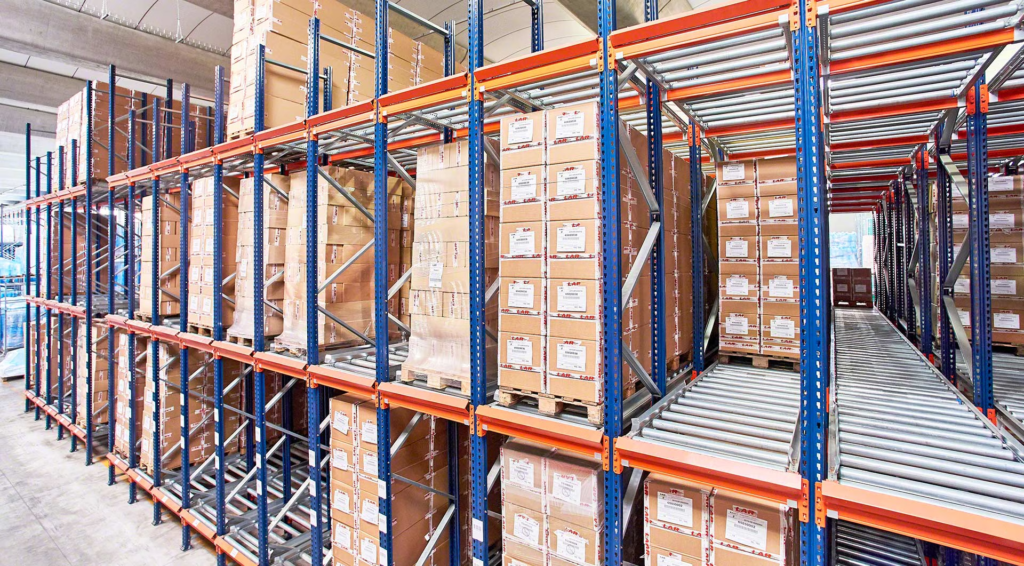

6. Pallet Flow Rack (Gravity Flow)
Pallet Flow Rack is a gravity flow best warehouse racking system that automatically pushes pallets towards the loading end with inclined roller lanes. Pallets are loaded from the back, and as stock is used, it moves forward to the picking face. This system is passive and doesn’t need any power, which helps save on operational costs. Well-suited for perishable inventory such as food, beverages, and pharmaceuticals that must be rotated by expiration date. High-density storage and automatic stock rotation make it essential for a distribution operation that requires temperature control.
Best for Specialized, Awkward & Heavy Loads

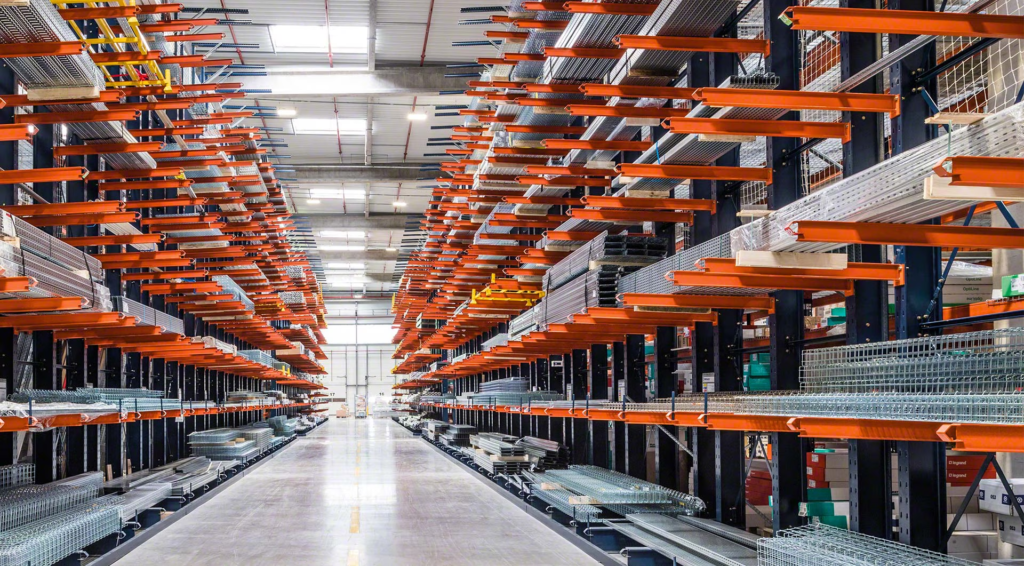

7. Cantilever Rack
The cantilever rack is an open arm rack type storage system that has been specifically engineered for long and bulky materials. It is the best storage racking that offers access without the front uprights that are found on regular shelving. This results in much faster and more efficient loading and unloading. They are the industry standard for the storage of pipes, timber, steel sheets, and PVC tubes. Materials of different lengths are securely supported by arms that extend out from a central column.

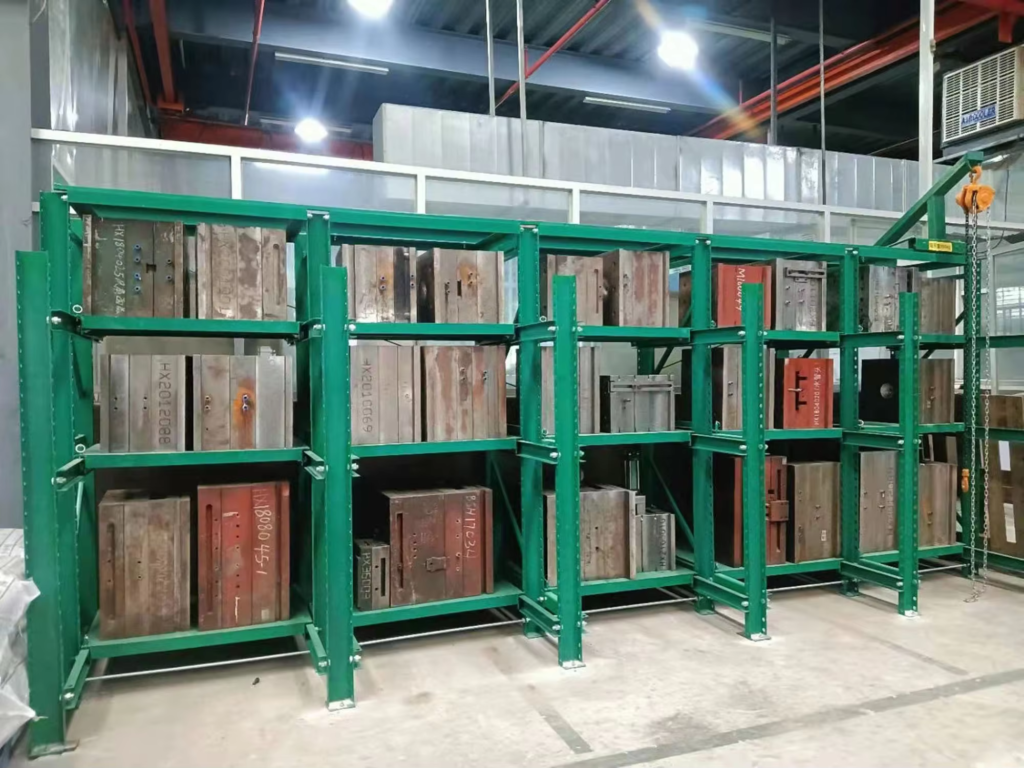

8. Mold Rack (Drawer Rack)
Mold racks are robust industrial storage racks designed to hold large injection molds and manufacturing dies. Reinforced rollout drawers in each unit provide smooth rollout with heavy loads. Molds can be easily removed and lifted by an overhead crane and directly picked up from open drawers. This design helps to keep tooling safe and avoid damage to expensive tooling, while also enhancing workplace safety. In high-volume injection molding and stamping plants, mold racks play a crucial role.
Best Warehouse Racking Systems for Space Optimization & Footprint Expansion

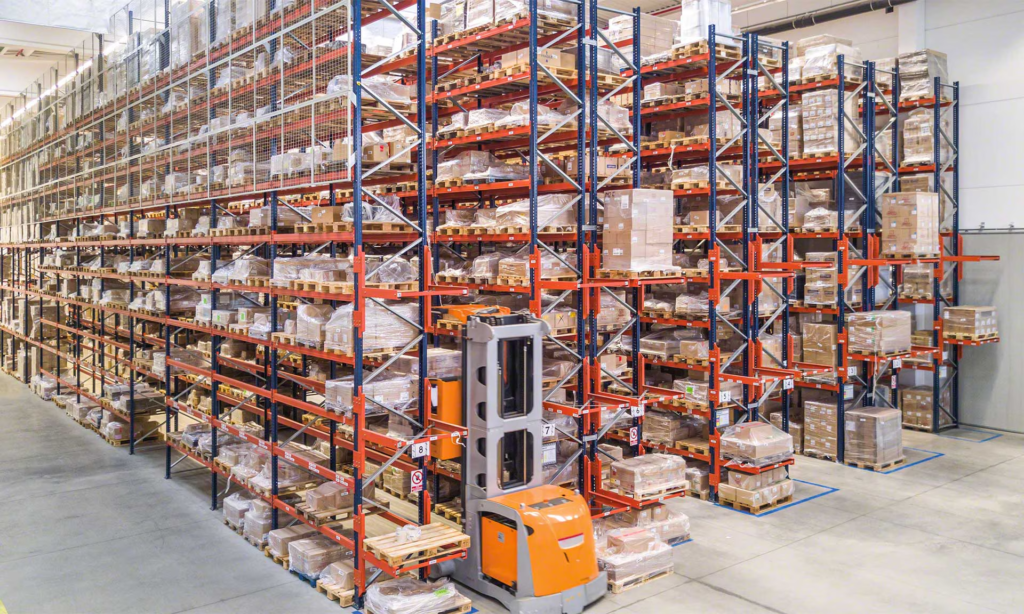

9. Narrow Aisle (VNA) Rack
VNA racking is a system that reduces the aisle width to 1.5-1.8m and uses a specialist guided forklift. These systems allow for many more storage locations in the same building area. High-ceiling warehouses are best suited because they add vertical density without compromising SKU selectivity. Unlike block stacking, each pallet is still accessible. Large inventories with a variety of products are balanced for both capacity and picking efficiency using VNA.

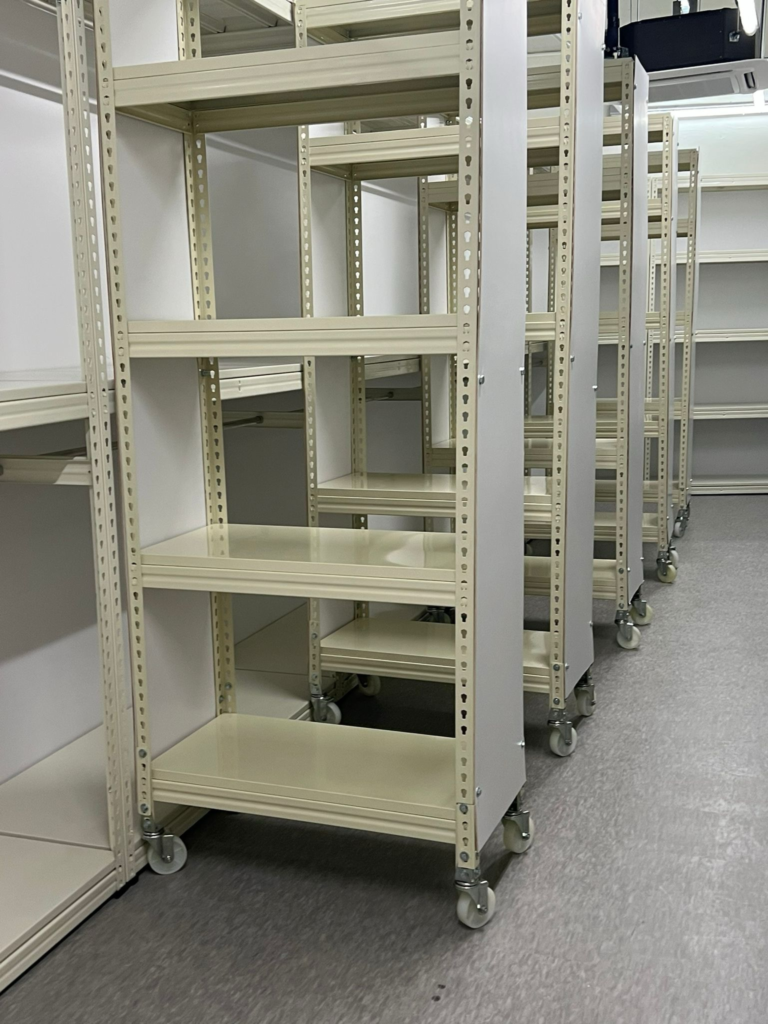

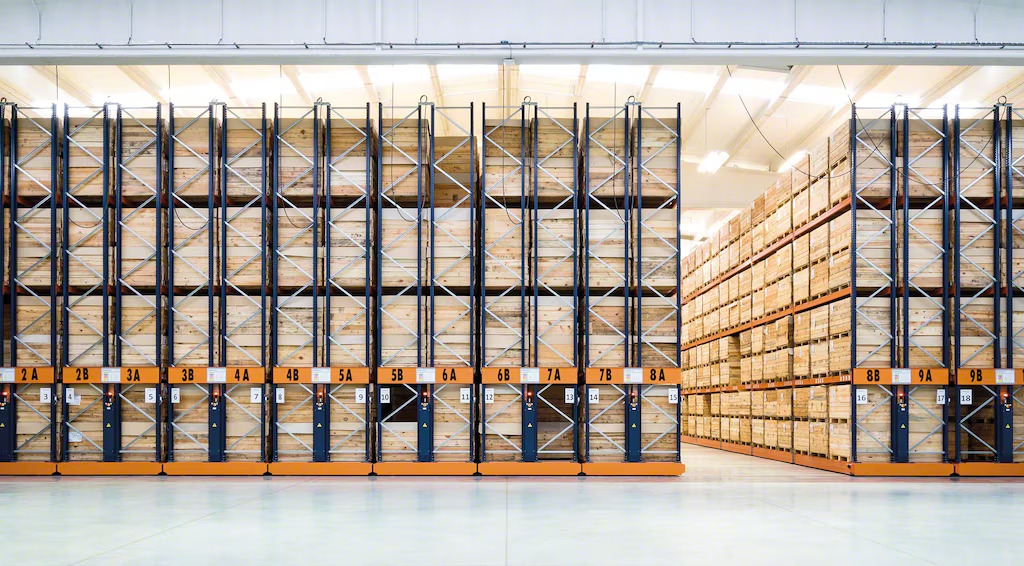

10. Mobile Racking
Mobile racking is a type of shelving that utilizes a motorized floor track and mounts standard shelving units so that fixed aisles are completely eliminated. A single working aisle is opened at a time, cutting floor space waste almost in half. This system is very much favored by cold storage facilities, as open space reduction also significantly reduces energy consumption. The system is capable of reliably carrying heavy loads of pallets, even though moving parts are involved. It is used when the density of the stored items is more important than retrieval speed, such as in pharmaceutical, food, and archival storage.

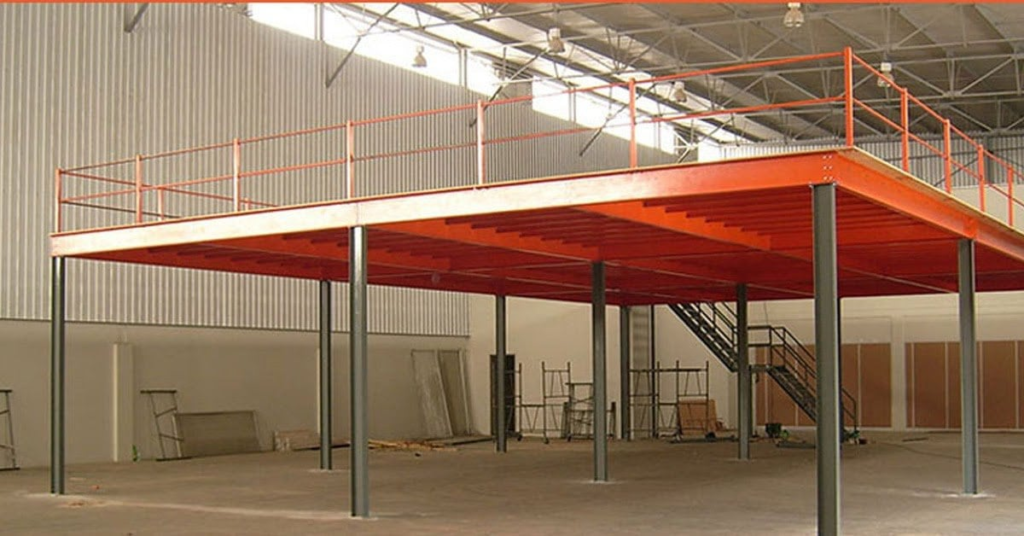

11. Steel Structure Mezzanine
Mezzanine floors are freestanding steel platforms that are installed over existing ground-level operations. This is an engineering solution that doubles the floor space without disturbing the outside structure of the building. The upper levels of the warehouse are used efficiently for picking stations, packing lines, or administrative offices. The load capacity of such a system is typically in the 300–500 kg/m2 range. It provides the highest ROI in situations where real estate costs make it impractical to expand physically.
Best Warehouse Racking Systems for E-Commerce, Small Parts & Manual Picking

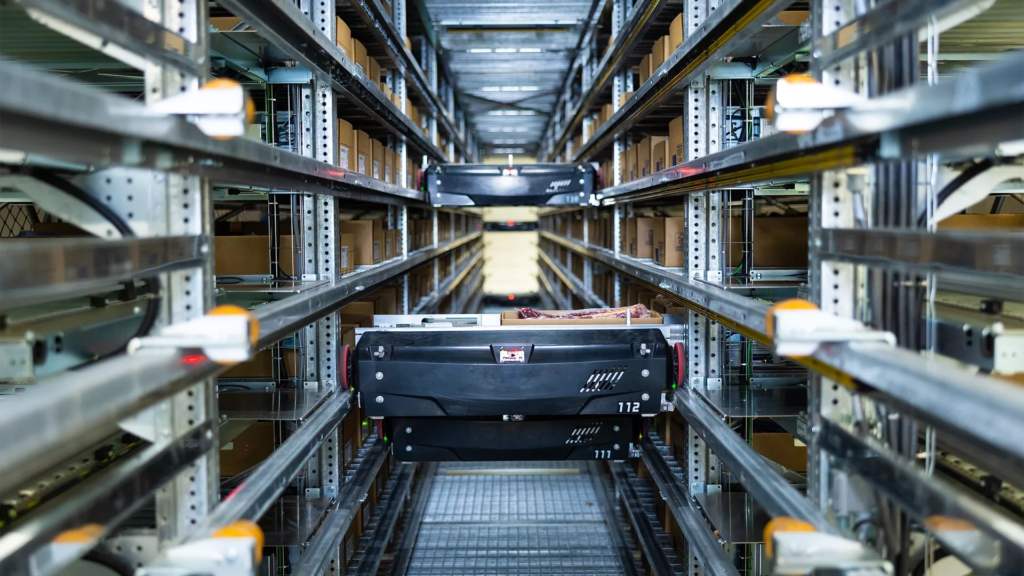

12. ASRS (Automated Storage and Retrieval System)
ASRS is an automatic storage and retrieval system operated by a computer. Its functioning is based on the simultaneous working of the robots using cranes, shuttles, and conveyors. This system provides extremely high picking accuracy, sometimes in excess of 99.9% throughout the operation. It benefits e-commerce businesses a lot as it has really fast turnaround times each day. It significantly reduces labor dependence and increases the throughput at the peak demand time.

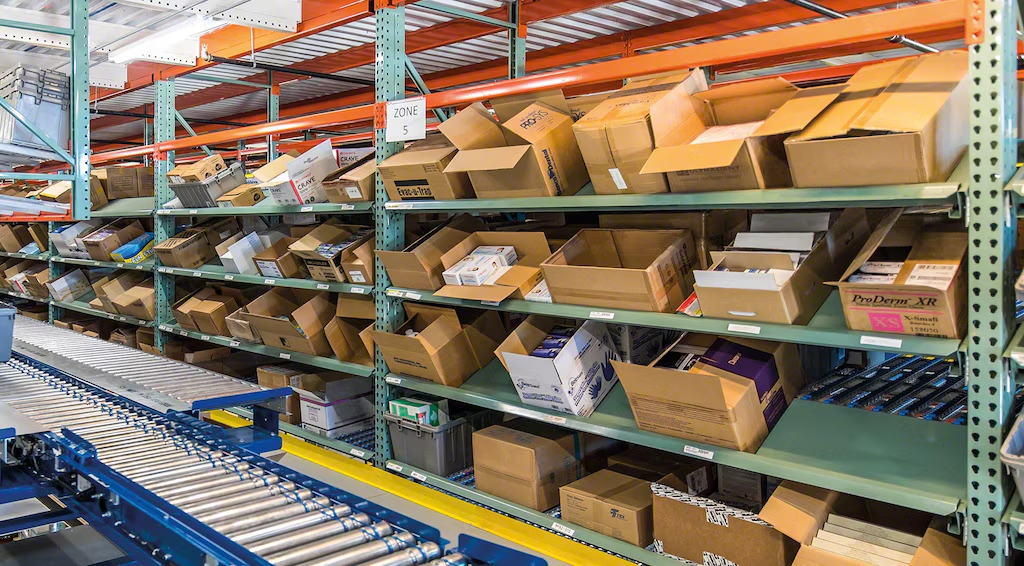

13. Carton Flow Rack
A carton flow rack is a gravity-fed shelving system for high-volume order picking. The inclined roller or wheel tracks enable cartons to automatically move forward. This self-feeding system is an efficient way to separate the loading zone from active picking faces. Pickers are never found unnecessarily walking through storage lanes to access fresh product. This greatly improves the speed of split case picking and helps to ensure a fluid assembly line fulfillment process.

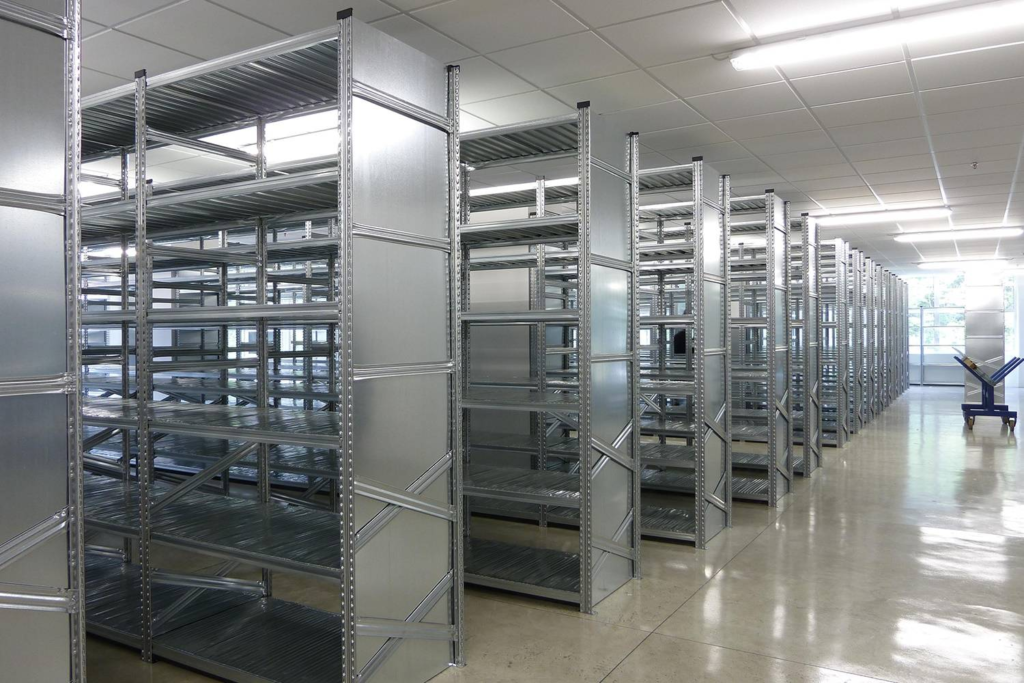

14. Light-Duty Boltless Shelving
Light-duty boltless shelving is a tool-free storage system designed for a manual picking environment. Shelves are quickly assembled, and reconfiguration is remarkably simple. It is the best warehouse shelving system that is ideal for packing stations in e-commerce, retail backrooms, and light industrial storage. The shelf levels can be adjusted depending on product size, eliminating the need for extra hardware. This system provides a low-cost, flexible base for organizing small parts management.
Best for Specific Environments & Flexibility
15. Stainless Steel Rack
Stainless steel racks are shelving units that are built for a purpose in challenging environments where contamination is a problem. They are non-porous and therefore provide a solid barrier against rust, bacteria, and chemical exposure. They are essential for food processing plants to maintain a high level of hygiene and to make it easy for them to wash down. They are used in laboratories to safely store reactive substances, which otherwise run the risk of corrosion. They can be repeatedly sanitized with industrial-strength cleaners and do not break down over time.

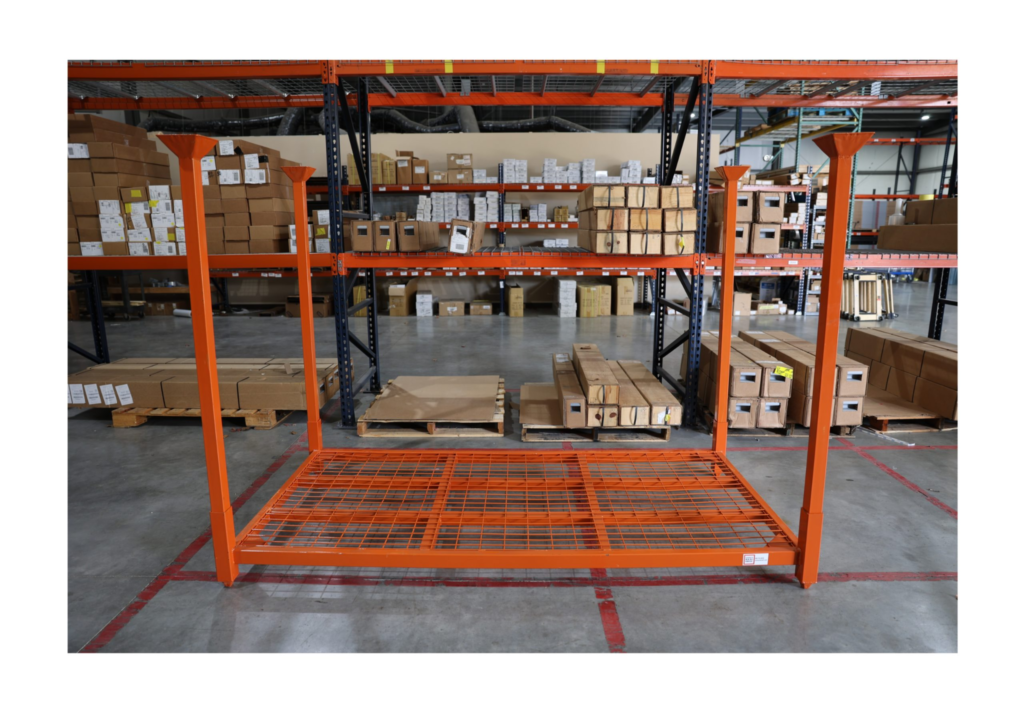

16. Stacking Rack (Post Pallet / Portable Rack)
Stacking racks are free-standing, modular storage units designed to provide flexible, temporary warehouse solutions. They can be stacked safely when filled with goods and will use space effectively vertically. They are flat when empty, saving a lot of floor space. They are ideal for seasonal businesses that deal with seasonal streams of inventory without having to invest in permanent structures. Their portability makes it easier to reconfigure them quickly, and they work well in dynamic, quickly changing storage environments.
Best Warehouse Racking Systems Comparison Table
| Racking System | Best For | Storage Density | Accessibility | Investment Level | Key Advantage |
| Selective Pallet Rack | General pallet storage | Medium | Excellent (100%) | Low | Lowest cost and maximum flexibility |
| Teardrop Pallet Rack | Standard pallet storage | Medium | Excellent (100%) | Low | Fast assembly and universal compatibility |
| Double Deep Pallet Rack | Increased pallet capacity | High | Moderate | Medium | Up to 30% more storage capacity |
| Drive-In Rack | Low-SKU bulk storage | Very High | Limited | Medium | Eliminates aisles for maximum density |
| Radio Shuttle Rack | Semi-automated pallet storage | Very High | Moderate | High | Reduced forklift travel and improved safety |
| Pallet Flow Rack | FIFO inventory rotation | High | Good | High | Automatic stock rotation using gravity |
| Cantilever Rack | Long and bulky materials | Medium | Excellent | Medium | Ideal for pipes, timber, and steel sheets |
| Mold Rack | Heavy molds and dies | Medium | Excellent | Medium | Safe storage with rollout drawers |
| VNA Rack | High-ceiling warehouses | High | Excellent | Medium-High | Maximizes vertical storage space |
| Mobile Racking | Space-constrained facilities | Very High | Moderate | High | Reduces aisle space by up to 50% |
| Steel Structure Mezzanine | Expanding floor area | Very High | Good | High | Doubles usable warehouse space |
| ASRS | High-volume automation | Very High | Automated | Very High | Maximum accuracy and throughput |
| Carton Flow Rack | Order picking operations | High | Excellent | Medium | Fast, gravity-fed carton replenishment |
| Light-Duty Boltless Shelving | Small parts storage | Medium | Excellent | Low | Tool-free installation and flexibility |
| Stainless Steel Rack | Hygienic environments | Medium | Excellent | High | Corrosion-resistant and easy to sanitize |
| Stacking Rack | Seasonal or temporary storage | Medium-High | Good | Low-Medium | Portable, collapsible, and reconfigurable |
Best Warehouse Racking Systems – Quick Selection Guide
- Best Budget Option: Selective Pallet Rack
- Best High-Density Solution: Drive-In Rack or Radio Shuttle Rack
- Best FIFO System: Pallet Flow Rack
- Best for Long Materials: Cantilever Rack
- Best for Warehouse Expansion: Steel Structure Mezzanine
- Best for Automation: ASRS
- Best for E-Commerce Picking: Carton Flow Rack
- Best for Hygienic Facilities: Stainless Steel Rack
- Best Flexible Storage Option: Stacking Rack
Why Choose Lracking for the Best Warehouse Racking Systems?
Choosing the right racking supplier is as vital as choosing the right storage system. Lracking has almost 20 years of manufacturing experience, and provides custom pallet racking, mezzanine floors, cantilever racks, mold racks, and automated storage solutions to meet the specific needs of warehouses. Lracking offers a full end-to-end service, from free layout design to accurate quotations, certified production to global shipping and installation support, all designed to help businesses maximize storage efficiency, safety, and long term operational value.
Conclusion
The best warehouse racking system is not necessarily the most suitable one, but rather the one that fits your inventory profile, operational process, space constraints, and expansion goals. Whether it’s a selective pallet rack, high-density storage, mezzanine, automated systems, or specialized racks, they all have their own specific functions. Assessing your storage needs carefully can help you develop a more efficient, productive, and scalable warehouse. Lracking’s expertise and support guarantee the best use of warehouse space with customized racking designs, installation guidance, and complete storage solutions to maximize performance.
